JLU (4-Door) GAS 3-5 INCH LIFT KING 2.5 INCH COILOVER PRO SUSPENSION SYSTEMS JEEP WRANGLER

EVO MFG
$19.99

JEEP WRANGLER JLU (GAS) ADJUSTABLE 3-5 INCH LIFT KING 2.5 INCH COILOVER PRO SUSPENSION SYSTEMS (4-Door)

EVO Jeep Wrangler JL Long Arm Coilover Suspension Rock Crawling Roll Over

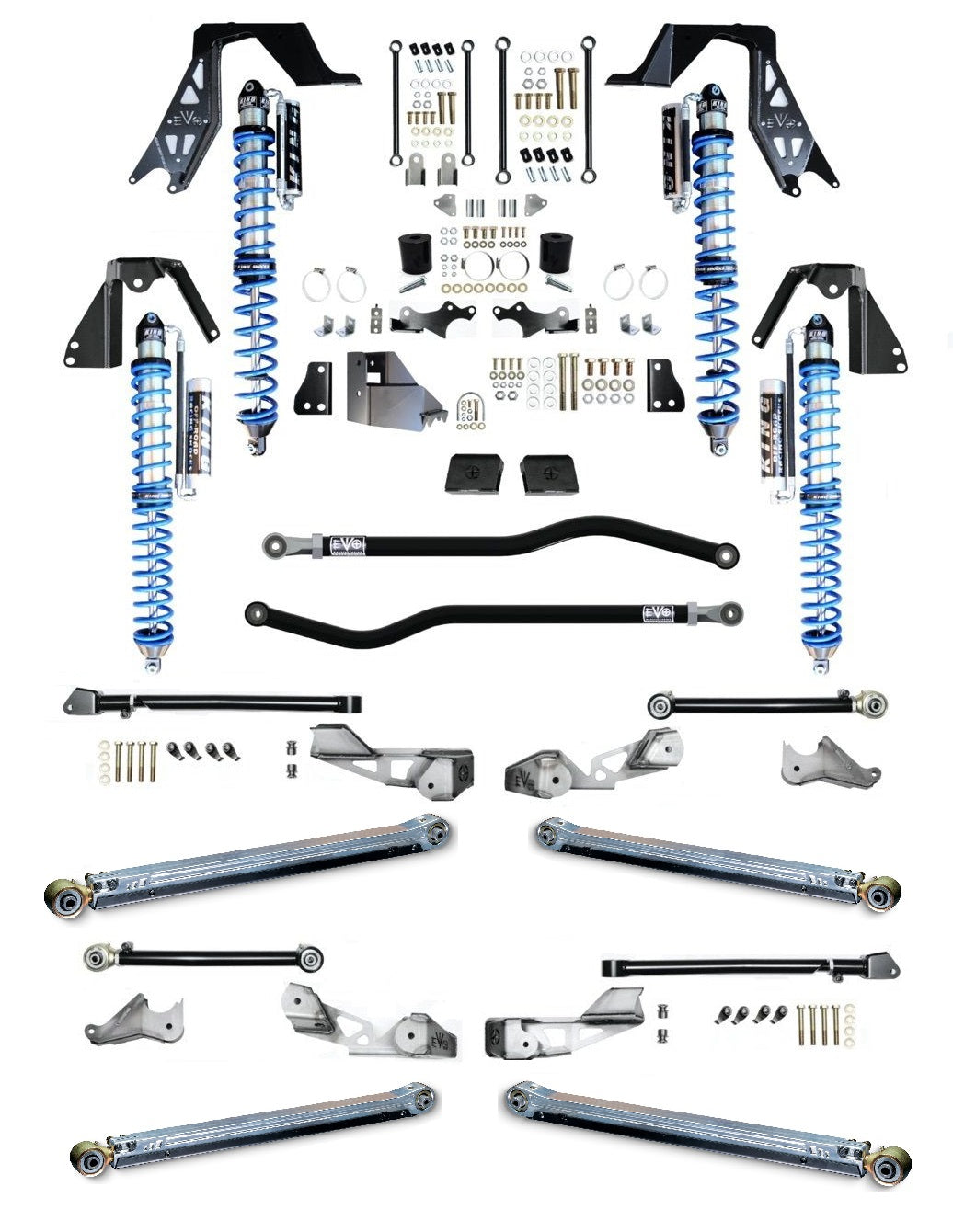

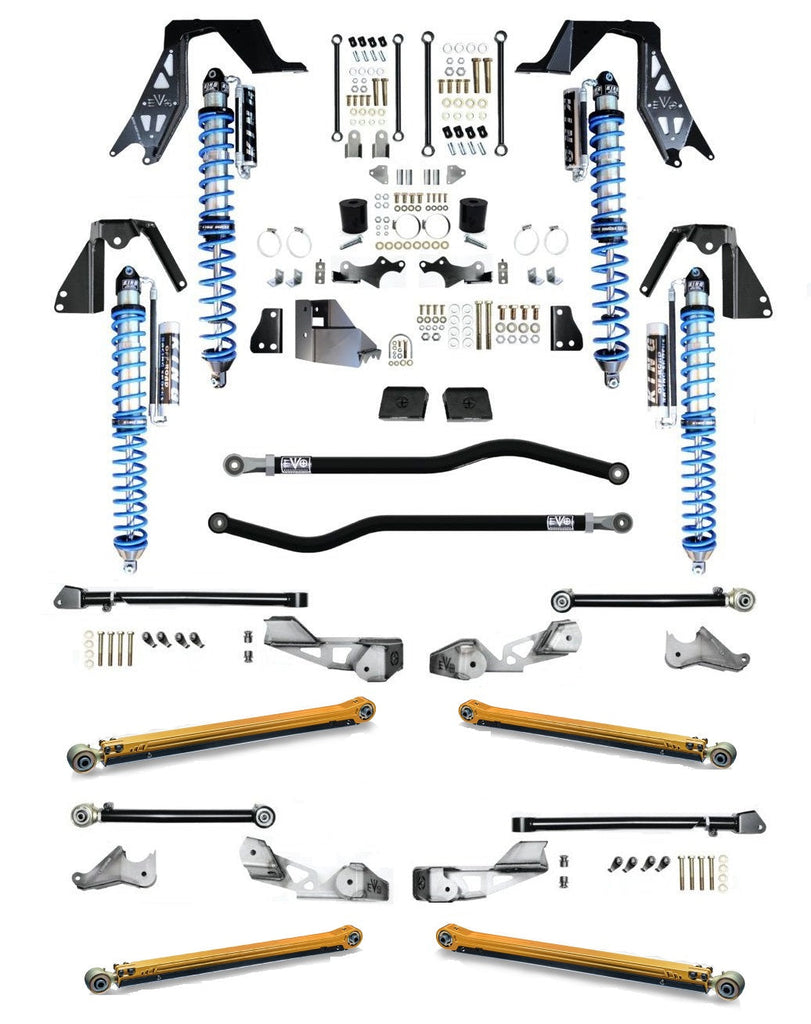

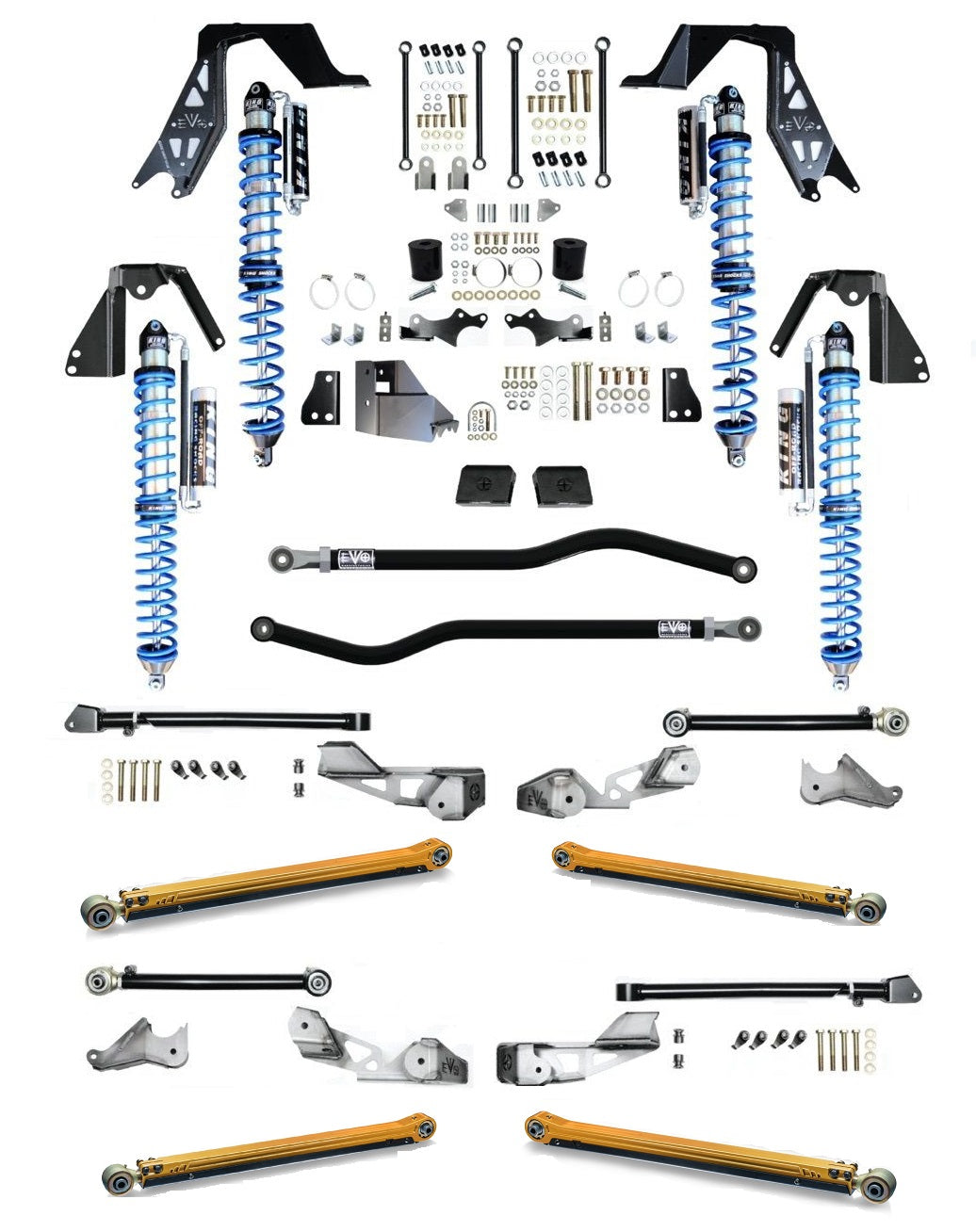

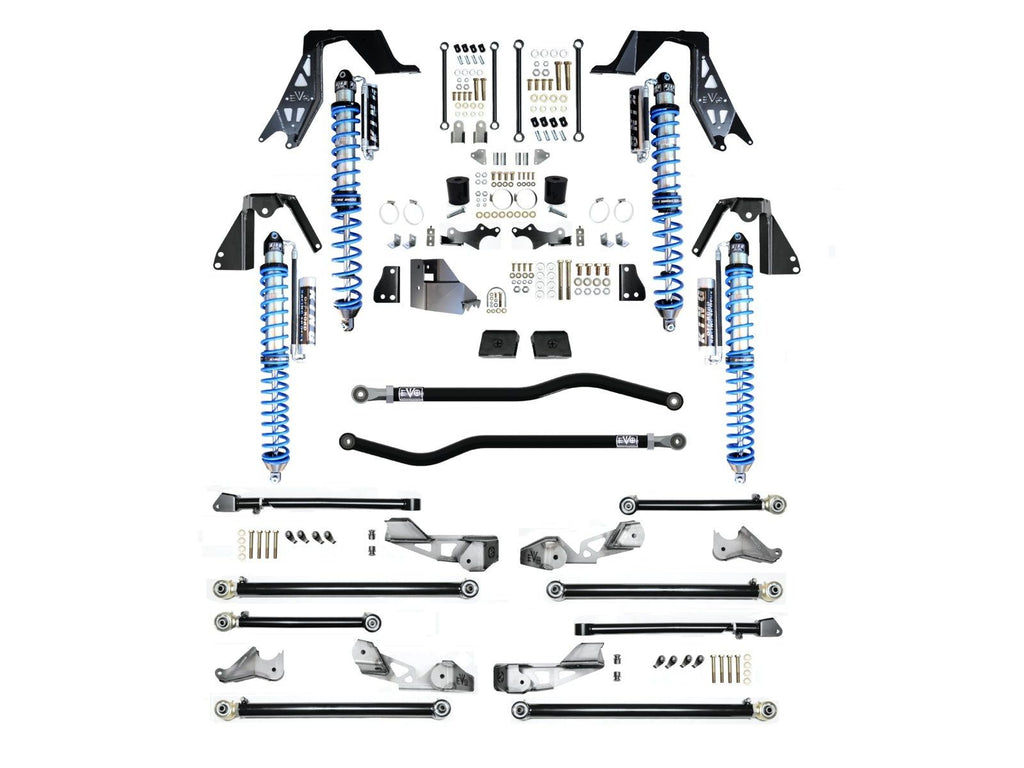

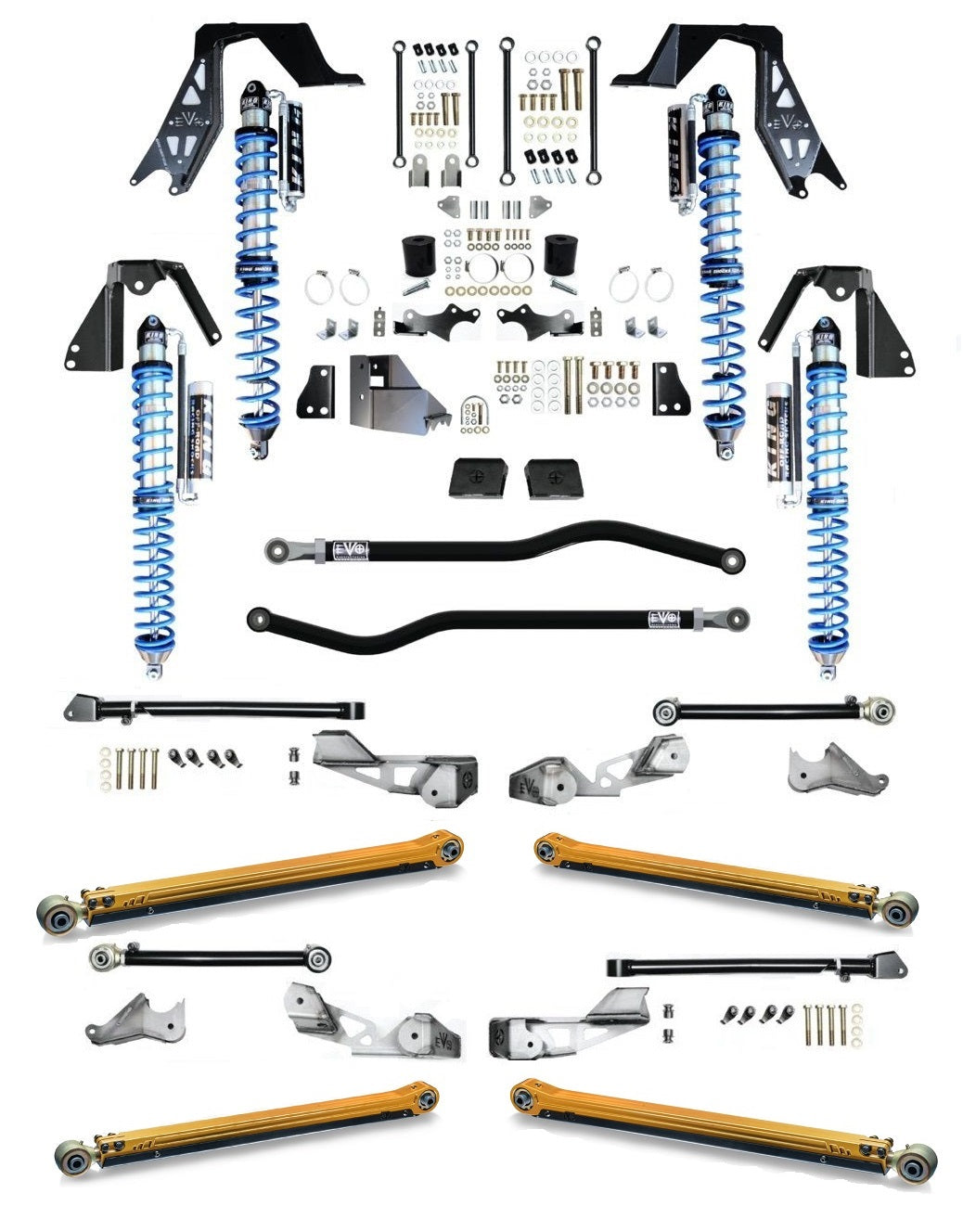

JL Enforcer PRO Stage 1 kits include the necessary upgrade suspension parts to convert your JL suspension to front and rear coilovers.

JL Enforcer PRO Stage 2 kits include Stage 1 components as well as EVO MFG Enforcer JL Front Lower Adjustable Control Arms to allow for caster adjustments. Stage 2 is the recommended minimum kit for all currently unmodified/stock suspension JLUs.

JL Enforcer PRO Stage 3 Kits include stage 2 components as well as EVO MFG Enforcer rear upper adjustable control arms for rear pinion angle adjustment. Stage 3 is the recommended minimum kit for JLs with aftermarket rear driveshafts.

JL Enforcer PRO Stage 4 kits include stages 1 components with addition of all 8 EVO MFG Enforcer control arms for full front and rear axle adjustments. The Ultimate Coilover Short/Mid Arm Suspension System.The coilover component of these kits is where the rear performance resides.

With the release of the JL Wrangler and EVO Manufacturing’s history in providing the most proven high-performance Jeep Wrangler Coilover suspension systems, we knew this high-performance product must continue on the JL.
Our primary focus from the moment we started this coilover conversion project was to build the most high-performance largest wheel travel, lowest lift (LCG) product possible.
The JL suspension and inner wheel wells gave us an excellent canvas to do so. Starting in the front with wide openings, high engine accessorial mounts and outboard shocks we found the ideal location.
By placing the shock upper mount up and rearward of its factory location, we are able to tuck the shock in close to the frame keeping it further away from tire which allows for more tire clearance and less backspacing requirements, but also allowing for a longer shock, more actual wheel travel and even lower minimum lift heights.
We then involved King Shock Technology and their engineers to build a custom length 2.5” Diameter long travel remote reservoir coilover to maximize travel and lift height. The high tucked in bracketry and custom long travel coilover produces the ultimate bolt on front coilover kit available.
With the same philosophy in mind as the front, we set out to build the most high performance rear coilover kit for the JL. We took the outboard mounting to whole new level but reinforcing both upper and lower mounts keeping the shocks slight reward mounting, optimizing travel without sacrificing the motion ratio.
We, with the aid of King Shock Technologies built a custom length specifically valved and tuned 2.5” Diameter long travel remote reservoir coilover to maximize travel and lift height.

Enforcer PRO:
The JL Enforcer PRO Kits achieve control arm limited 11.5/12” of wheel travel with only 3-5” (lift height is adjustable) of lift and most wheel and tire combination will require a backspacing of 3.75” or smaller.
Necessary equipment is included to convert including brake line provisions, bump stop extensions, swaybar end links, limit straps and hardware.
All Bracketry is laser cut, CNC press brake formed and fixtured welded for great fitment. This product is easy to install by the mechanically inclined or professionals.
Bolt on installation (Some cutting and drilling required). PLUS kits include Front and Rear adjustable trackbars. Factory front driveshaft is compatible, aftermarket optional.

High Clearance Long Arm PRO: Unlimited 14.5" of wheel travel with only 3-5” (lift height is adjustable) of lift and most wheel and tire combination will require a backspacing of 3.75” or smaller. Bolt on and Weld on installation (Some cutting and drilling required). PLUS kits include Front and Rear adjustable trackbars. Front Aftermarket Driveshaft required to achieve the Long Arm compatible 14.5" of wheel travel (non limit strapped). EVO High Clearance Long Arm is only compatible on 4 Door JLU

4 Link Front and Rear Suspension System

Upgrades:

EVO-3098V Front Inner Fenders
EVO-600081KB Front Air Bumps
EVO-600179KB Rear Air Bumps
EVO-600132 Front Stainless Steel Brake Lines
EVO-600133 Rear Stainless Steel Brake Lines


Compatible Year Wrangler: 2018 2019 2020 2021 2022 2023 2024

Long Arm PRO Labor Hours: 24-35
